Precision Turbo and Engine - Sportsman Next Gen 8685 CEA - Race Turbocharger

HP Rating: 1800

We know you want to be the best both on the track and off. Whether you're a diehard racer or just looking to boost your daily driver's performance, Precision Turbo and Engine has what you need. For exceptional power and unbeatable technology at an affordable price, PTE can help you find the perfect turbocharger for your unique setup.

PTE's Next Gen 8685 Turbocharger features the following:

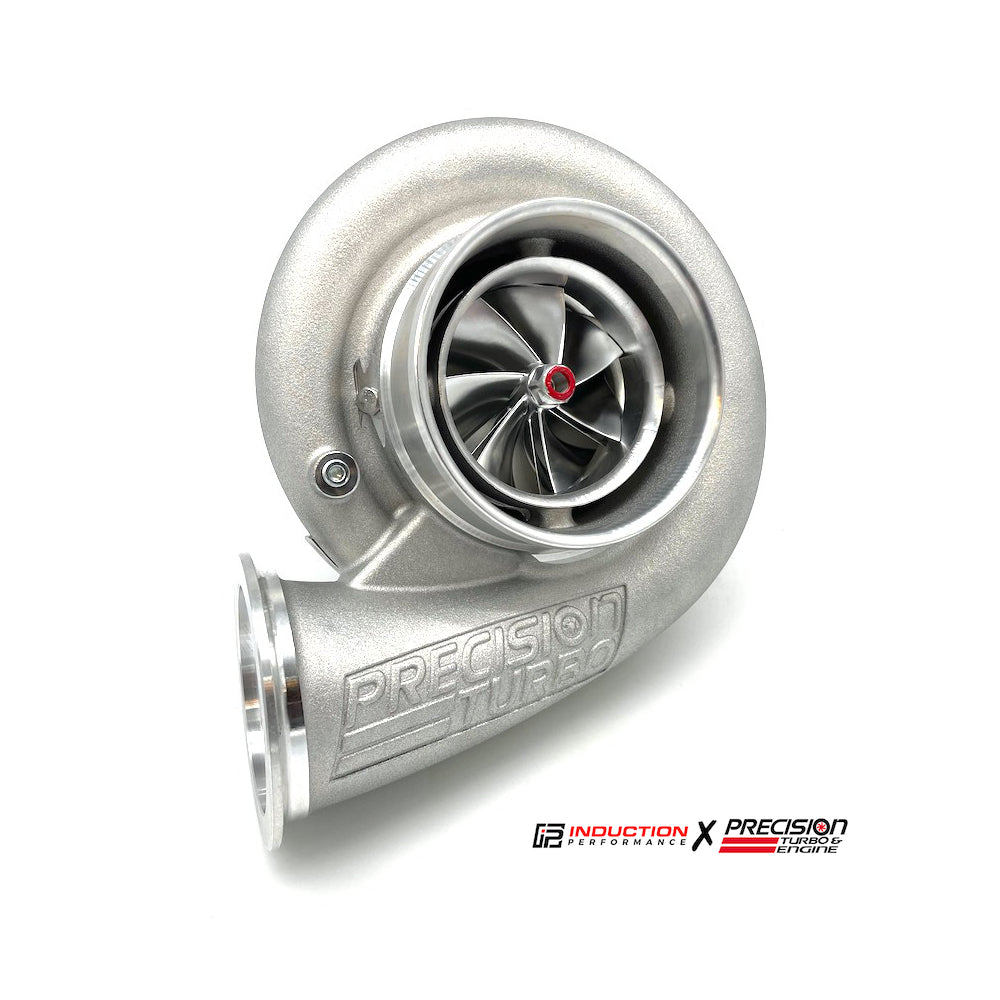

All new sportsman frame sized 8685 turbocharger features a Next Gen, 86mm CEA compressor wheel mated to our 85mm high flow turbine wheel. This unit is based on the Sportsman ball bearing turbo and is available with multiple turbine housing options. Designed to take your build to the Next Generation, the Next Gen Sportsman 8685 is a record setting turbocharger.

- Next Gen CEA (Competition Engineered Aerodynamics) 86mm Compressor Wheel Machined from a 2618-Aluminum Forging with a 115mm Exducer

- Air-Cooled, Dual Ceramic Ball-Bearing Center Housing Rotating Assembly (CHRA)

- Sportsman Compressor Cover with a 5.0” Inlet and 4.2” Outlet

- 85mm CEA Turbine Wheel (85mm Exducer / 90mm Inducer)

- Recommended Max Turbocharger Speed: 116,000 RPM

Turbine Housing options:
- Divided T4 1.12 A/R - 27809219329
- Divided T4 1.28 A/R - 27809219339
- Sportsman Stainless V Band In / Out 1.00 A/R - 27809219819
- Sportsman Stainless V Band In / Out 1.15 A/R - 27809219829
- Sportsman Stainless V Band In / Out 1.28 A/R - 27809219839
- No Turbine Housing - 27809219999

Precision customers have a history of setting records and getting noticed. They don't sit in the stands watching the action, they're the ones making it happen. Innovation is a collaborative process and we focus our efforts on you. Get involved and be a part of the action today with PTE.
